IPC

Inter-process communication techniques.

Message Queue

Each process holds one Port (index 0). A Port contains a fixed-size circular Queue of up to 10 Message entries.

struct Message {
    port_id:  usize,   // frame length when used for network delivery; otherwise 0
    src_pid:  usize,   // sender PID
    dst_pid:  usize,   // target PID
    buf_addr: u64,     // address of the payload buffer (in kernel .bss MSG_BUF)
}

Sending (syscall 0x36 / send_data)

  1. The caller copies its payload into MSG_BUF[0] (512-byte kernel buffer).
  2. A Message is constructed with buf_addr = MSG_BUF[0].as_ptr().
  3. scheduler::push_msg(target_pid, msg) enqueues the message and transitions the target to Ready if it was Blocked.

Receiving (syscall 0x35 / receive_data)

  1. scheduler::pop_msg(current_pid) dequeues the front message.
  2. If a message is available, the payload is copy_nonoverlapping into the caller's user-space buffer and the frame length is returned.
  3. If the queue is empty, scheduler::block(pid, sentinel_msg) transitions the caller to Blocked. The scheduler will not run it again until a message arrives and wake is called by the sender.

This is a blocking, single-message-at-a-time rendezvous. There is no non-blocking peek; the caller blocks until data arrives.

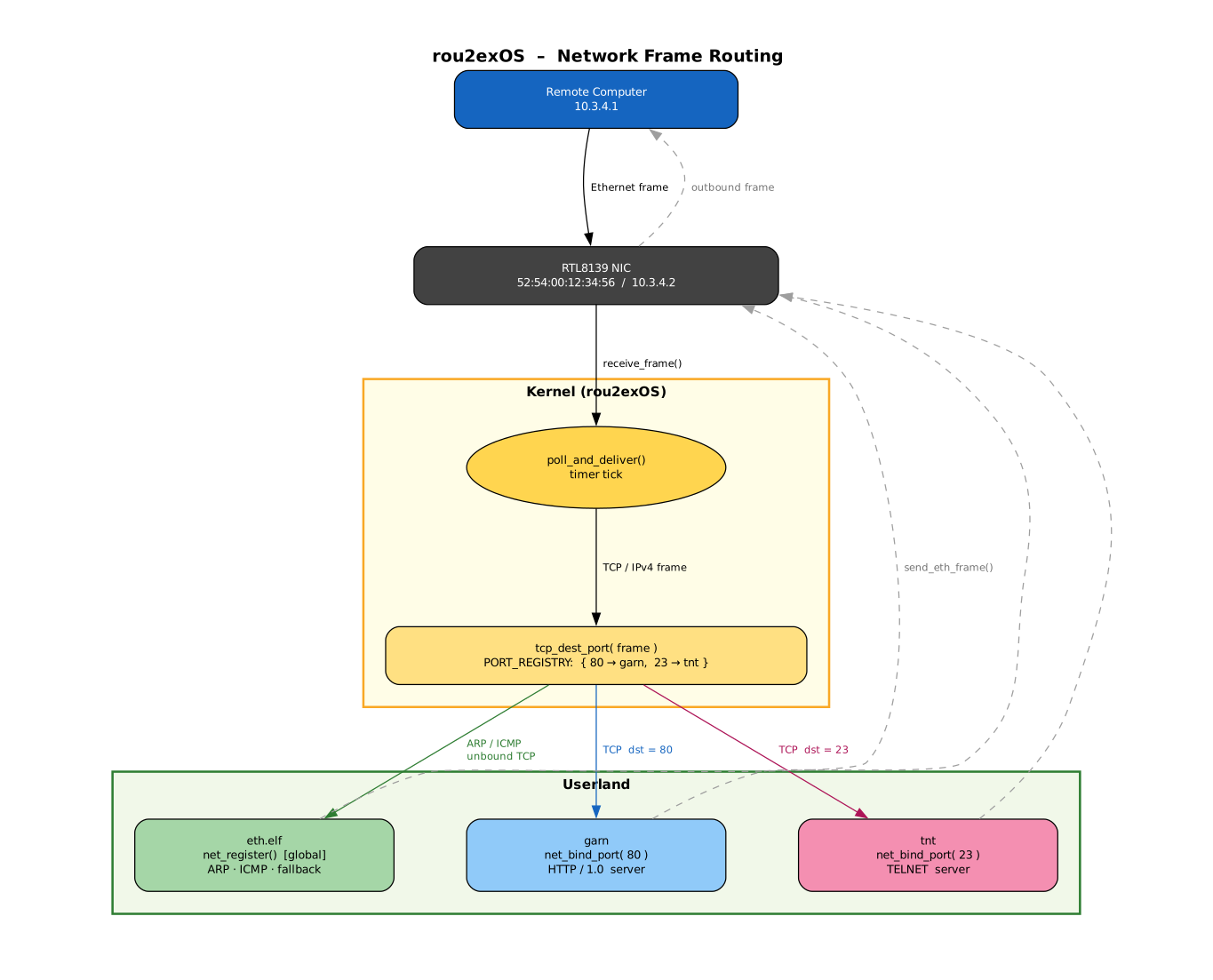

Network Delivery (RTL8139 → userland driver)

The NIC driver polls for incoming Ethernet frames in scheduler_schedule (before the round-robin pick, once per PIT tick via netdrv::poll_and_deliver). When a frame arrives it is placed in the registered driver process's message queue using the same push_msg mechanism, waking the driver if it was blocked on receive_data.

network-frame-routing

Keyboard Pipe (IRQ 1 → userland)

User processes can subscribe to raw PS/2 scancodes via syscall 0x03 (pipe subscribe). The IRQ 1 handler writes each scancode byte into all subscribed circular buffers. A process reads its buffer with syscall 0x03 / 0x03 (pipe read). This is a polled, non-blocking path — the process must periodically call pipe_read rather than blocking.
